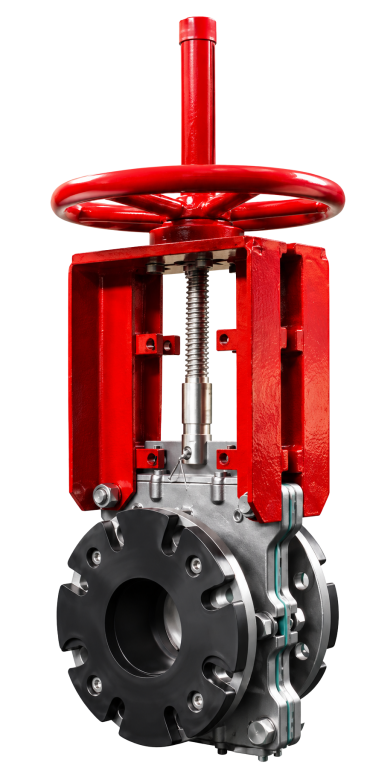

Slurry Knife Gate Valves
A bi-directional wafer/lug/flanged knife gate valve with metal-reinforced rubber sleeves is typically designed for abrasive and corrosive slurry service.
Valves are suitable for abrasive and corrosive operating conditions and feature removable metal-reinforced rubber sleeves for extended
service life.
- NOMINAL SIZE:
DN50 - DN1000 - BODY TYPE:
WAFER type with through holes
LUG type with threaded holes
FLANGED type - WORKING PRESSURE:
6 bar / 10 bar /16 bar - FLANGE CONNECTION: :
PN6 / PN10 / PN16 / Class 150 - WORKING TEMPERATURE:
-20°C / -10 °C / +150 °C - WORKING MEDIA:
Coal handling, Ash slurry, Raw meal, Kiln dust, Grit, Sludge, Abrasive solids, Abrasive or corrosive slurries
